Πηγές Φωτός

Αυτές οι εξωτερικές μονάδες παρέχουν φωτισμό που μεταδίδεται στο μέσο προβολής μέσο ενός καλωδίου, στη συνέχεια μέσα από το πεδίο, μέσο δέσμης ινών στην άκρη προβολής.

Light Source Brightness Comparison MK Mini-scope

UHP


UHP High Intensity Light Source ILP-2

Bright and compact
The ILP-2 light source has been specifically designed for large void inspections. Incorporating the latest UHP lamp technology it is now the brightest, most powerful light source ever produced by Olympus.

Note: Not available for the Small diameter borescopes. In use with the other rigid borescopes, connectable light guides differ depending on the rigid borescope models. Please ask our sales representatives for details.

ILP-2
 ILP-2
Voltage100-240 V AC/ 10-15 DC
Power consumption100 W
Dimensions166(W)×109(H) ×261(D) mm
Weight2.9 kg
Colour Temperature8200 K

Metal-Halide


Metal-Halide High Intensity Light Source ILH-2A / ILH-2B

With three times the intensity of its predecessor, this high-output light source is ideal for observing large spaces.

ILH-2A
 ILH-2AILH-2B
Voltage100-240 V AC12 V DC
Power consumption100 W
Dimensions173(W)×85(H)×235(D) mm
Weight3.0 kg
Colour Temperature8000 K

LED


LED Light Source ILD-2

Directly competing with the high power halogen units in terms of brightness, but only using a fraction of the power - this light source provides a freedom of portability that only LED technology can offer. Coupled with the comprehensive range of scope adaptors available, this lightsource is the most versatile we have ever offered.

LED Light Source ILD-2
 ILD-2
Power SupplyILD-C or Accessory Desktop PSU
Dimensions81mm long x 38mm diameter
Weight108 g
Run time2.5 hours at full brightness from the ILD-C.
Colour Temperature5500 K
LED Lifetime90% 65,000 hours

LED Light Source ILD-3

The LED light source designed for the MK Modular Mini-scope gives superior brightness at reduced power consumption, and the greatly increased LED life offers lower long term cost and reduced environmental impact. With the use of adaptors it can be fitted to a range of scopes, giving our rigid borescopes or fiberscopes a unique portability.

LED Light Source ILD-3
 ILD-3
Power Supply3 VDC rechargeable batteries, ILD-C or Accessory Desktop PSU
Dimensions55mm long x 30mm diameter
Weight65 g without CR123 battery
Run time1.5 hours per interchangeable battery or 8 hours at full brightness from the ILD-C.
Colour Temperature6350 K
LED Lifetime94.1% 6,000 hours

ILD-C

The ILD-C runs the ILD-2 or ILD-3 at their peak current, ensuring their brightest and safest performance, with no drop off over time. It also offers brightness control and prolonged run time from its rechargeable internal battery, negating the need for external power and providing a completely portable light source. The provided desktop power supply will charge the ILD-C at the same time as running the attached ILD-2 or ILD-3, offering continuous use.

ILD-C
 ILD-C
Power Supply9 to 19 VDC
Power consumption38 W Max when charging
Dimensions130mm x 90mm x 38mm
Weight650 g

Connecting Scope Adaptors for ILD-2 and ILD-3

A range of adaptors to connect the compact light sources to our various rigid borescopes and fiberscopes.

Connecting Scope Adaptors for ILD-2 and ILD-3
Light SourceILD-2ILD-3
Adapted Scopes via Connecting Scope AdaptorsStandard Rigid Borescopes
Swing-Prism Borescopes
Zoom Swing-Prism Borescopes
Small Diameter Borescopes
Fiberscopes with Olympus Light Guides
Engine BorescopesOlympus Medical Fiberscopes
Olympus Medical Rigid Borescopes
Note: Adaptors connecting ILD-2 to rigid borescopes from other companies are also available.Note: MK Modular Mini-scopes are directly connectable to ILD-3.

Belt Clip and ILD-2 Holster

Available as accessories converting the ILD-C and ILD-2 into a portable light source system for our rigid borescopes and fiberscopes.

Belt Clip and ILD-2 Holster


Halogen

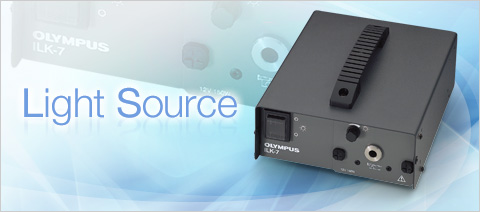

Halogen Light Source ILK-7/ 7A/ 7B (This item is not available in all areas)

The ILK-7 range of light sources incorporates a 150W tungsten-halogen lamp offering features necessary to meet most industrial needs.

ILK-7
 ILK-7ILK-7AILK-7B
Voltage100-120 VAC
115 VAC 400 Hz
100-240 VAC
115 VAC 400 Hz
11-15 VDC
100-240 VAC
115 VAC 400 Hz
Power consumption190 W
Dimensions178(W)×76(H) ×230(D) mm
Weight2.3 kg
Colour Temperature3550 K

Long-life Halogen Light Source ILK-7C (This item is not available in all areas)

Refined for environmental resistance and long life, this model is suitable for use on production lines.

ILK-7C
 ILK-7C
Voltage*100-120 V AC
Power consumption190 W
Dimensions178(W)×76(H) ×230(D) mm
Weight2.3 kg
Colour Temperature3550 K

*When voltage in your country is NOT 100-120V, a voltage transformer is required to provide optimal voltage that accommodates the specification of the optical device.

Significantly longer life
The life of this light source has been dramatically extended to an average 500 hours when 15V 150W lamps are used.

Improved environmental resistance
The circuit board is insulated with an encapsulating material that reduces the possibility of short-circuiting and improves atmospheric-resistance at the site.


ILK-D1 (This item is not available in all areas)

The ILK-D1 portable light source has been specifically designed for use with a battery belt, being operated from a 12V supply. The light source has a large spring clip to enable it to be mounted on a belt or jacket pocket.

ILK_D1
 ILK-D1
Voltage12 V DC
Power consumption80 W
Dimensions80(W)×60(H) ×140(D) mm
Weight0.6 kg
Colour Temperature3500 K

ILK-D2 (This item is not available in all areas)

The ILK-D2 is a compact, portable light source powered from 12V DC supply. It can be mounted on a belt using a spring clip.

ILD-D2

 ILK-D2
Voltage12 V DC
Power consumption105 W
Dimensions147(W)×75(H) ×168(D) mm
Weight1.0 kg
Colour Temperature3350 K

UV


UV Light Source (Recommended models are available from our sales representatives)

Powerful UV output makes it ideal for fluorescent testing.
A common non-destructive testing (NDT) technique for crack detection uses dye-penetrate. In this method, dye remains in the cracks after cleaning, which is then observed when it fluoresces under ultra-violet light.
To suit this application and others where ultra-violet light is required, Olympus offers a high power UV light source which is compatible with all light guide cables and fiberscopes. Liquid light guide cables are recommended for best UV results.

3 mm MK Liquid

3 mm MK Liquid

Standard lengths*
1.8 m
2.5 m
5.0 m


3 mm Liquid

3 mm Liquid

Standard lengths*
1.8 m
2.5 m


5 mm Liquid

5 mm Liquid

Standard lengths*
1.8 m
2.5 m


5.5 mm Fiber

5.5 mm Fiber

Standard lengths*
1.0 m
2.0 m
3.0 m
5.0 m

* other lengths available on request


 3 mm MK Liquid3 mm Liquid5 mm Liquid5.5 mm Fiber
Small Diameter Borescope
MK Mini-Modular
Series 5 - 4 mm
Series 5 - 5.5 mm
Series 5 - 6 mm
Series 5 - 8 mm
Series 5 - 10 mm

✓ = Optimum Brightness Option  ● = Compatible  △ = Not Recommended
