Ηλεκτρομαγνήτες (YOKES) - MAGNAFLUX

H MAGNAFLUX προσφέρει ευρύ φάσμα από πεταλοειδής ηλεκτρομαγνήτες (Yokes) και πηνία (Coils) για την κάλυψη ακόμα και των πιο απαιτητικών επιθεωρήσεων με την χρήση μαγνητικών σωματιδίων. Τα προϊόντα της αποτελούν τα πιο αξιόπιστα της αγοράς, προσφέροντας εξαιρετικές επιδόσεις χάρη, στον εργονομικό τους σχεδιασμό και το χαμηλό τους βάρος.

Y1Y6Coil

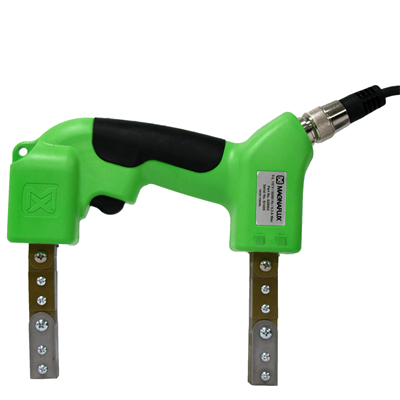

NEW Y2 Electromagnetic Yoke

Y2ONLY 2,1Kg

The Y1 is a lightweight electromagnetic Yoke that’s easy to use, with a custom ergonomic design that fits comfortably in your hand.

  • Ergonomic design
  • Soft grip for comfort
  • Impact and chemical resistant shell

The Y1 conforms to the following specifications:
  • ASME Boiler and Pressure Vessel Code Section V, Article 7
  • ASTM E709
  • ASTM E1444
  • EN-ISO 9934-3
  • MIL-STD-271

Y6 AC Magnetic Yoke


Y6IP 64

The Y6 is a lightweight encapsulated AC yoke designed for reliable one-person inspection. It is easy to use single-handed and its articulated legs make it ideal for inspecting components of different sizes and shapes.

  • Demagnetising capability
  • Exceeds specific lift weight recommendations
  • Articulated legs with 25 x 25 mm pole area
  • Poles adjustable from 25 – 250 mm



The Y6 conforms to the following specifications:

  • ASME Boiler and Pressure Vessel Code Section V, Article 7
  • ASTM E709
  • ASTM E1444
  • EN-ISO 9934-3
  • MIL-STD-271

Y7 AC/DC Magnetic Yoke


Y72 magnetic fields

The Y7 gives you the option of two magnetic fields: a constant AC field to reveal surface defects or a pulsed DC field for revealing both surface and near-surface defects. Designed for portable one-person inspection, its articulated legs contour to any part shape to assure good contact.

  • AC and DC magnetic fields
  • Articulated, double-jointed legs
  • Solid state controls for maximum safety and reliability
  • Demagnetising capability



The Y7 conforms to the following specifications:

  • ASME Boiler and Pressure Vessel Code Section V, Article 7
  • ASTM E709
  • ASTM E1444
  • EN-ISO 9934-3
  • MIL-STD-271 (SH)




Y8 Battery-operated Magnetic Yoke


Y8Fully portable

Thanks to its lightweight construction and battery pack with charger, the Y8 is fully portable and ideal for field inspection, making it one of the most versatile pieces of MPI equipment available.

  • Battery pack with convenient shoulder strap
  • Solid state controls for maximum safety and reliability
  • Exceeds specific lift weight requirements
  • Adjustable articulated legs with 25 x 25 mm pole area
  • Poles adjustable from 25 – 250 mm



The Y8 conforms to the following specifications:

  • ASME Boiler and Pressure Vessel Code Section V, Article 7
  • ASTM E709
  • ASTM E1444

YM5 Permanent Magnet Yoke


YM5Truly portable

Crafted from Magloy 1 to ensure maximum magnetic field strength, the YM5 does not need an electrical supply, making it a truly portable and convenient way of magnetising components for crack detection.

  • Supplied with a keeper bar so you can easily check the magnetisation strength.
  • Hinged arms and rotating pole pieces allow a wide variety of profiles to be magnetised.
  • Easy removal of the pole pieces from the component.
  • Gauss pull test: > 18 Kg lift



The YM5 conforms with the following specifications:

  • ASME Boiler and Pressure Vessel Code Section V, Article 7
  • EN-ISO 9934-3
  • MIL-STD-271F (SH)

L10 Magnetising Coil


L10Up to 250 mm

The L10 electromagnetic coil is specifically designed to detect transverse defects in shafts, spindles and similar components. It can inspect parts up to 250 mm (10”) diameter. Has a wear-resistant resin coating and is supplied with a footswitch to energise the coil and 10 metres of flexible supply cable.


Features and Benefits

  • AC and HWDC output
  • Ideal for transverse defect location
  • Demagnetisation capability
  • AC/DC operation
  • Hands-free control via a footswitch
  • Completely portable
  • All units carry the CE mark and conform to the appropriate EU directives.
